Author Topic: GPS (satnav) wiring solution  (Read 1136 times)

1980sdga

  • Vintage
  • ***
  • Posts: 813
  • Location: Ga. USA
GPS (satnav) wiring solution
« on: 15 December 2011, 12:14 PM »

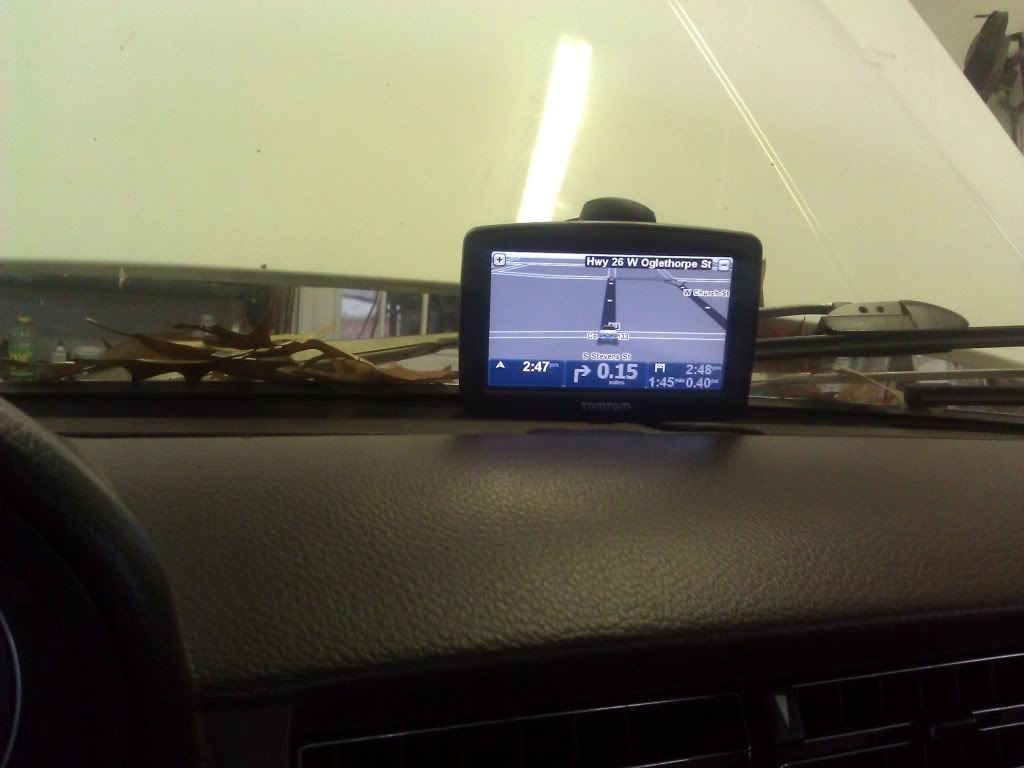

I rely on GPS quite a bit for work so I always run one. I can't stand having wiring running all over the cockpit so I came up with this:

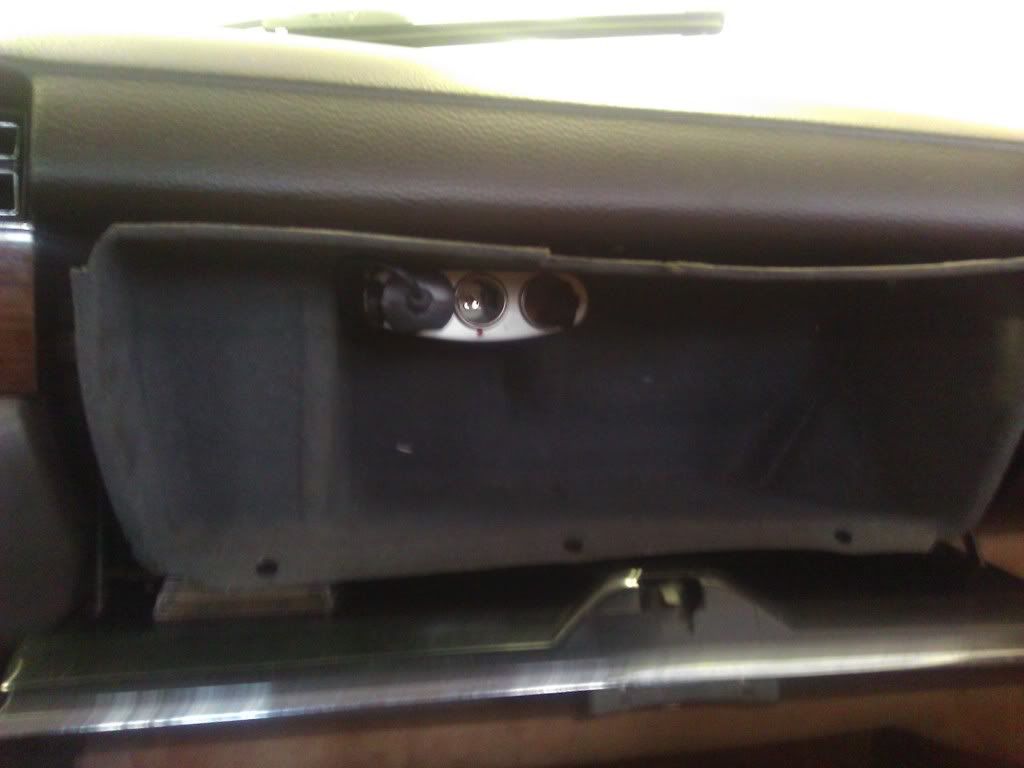

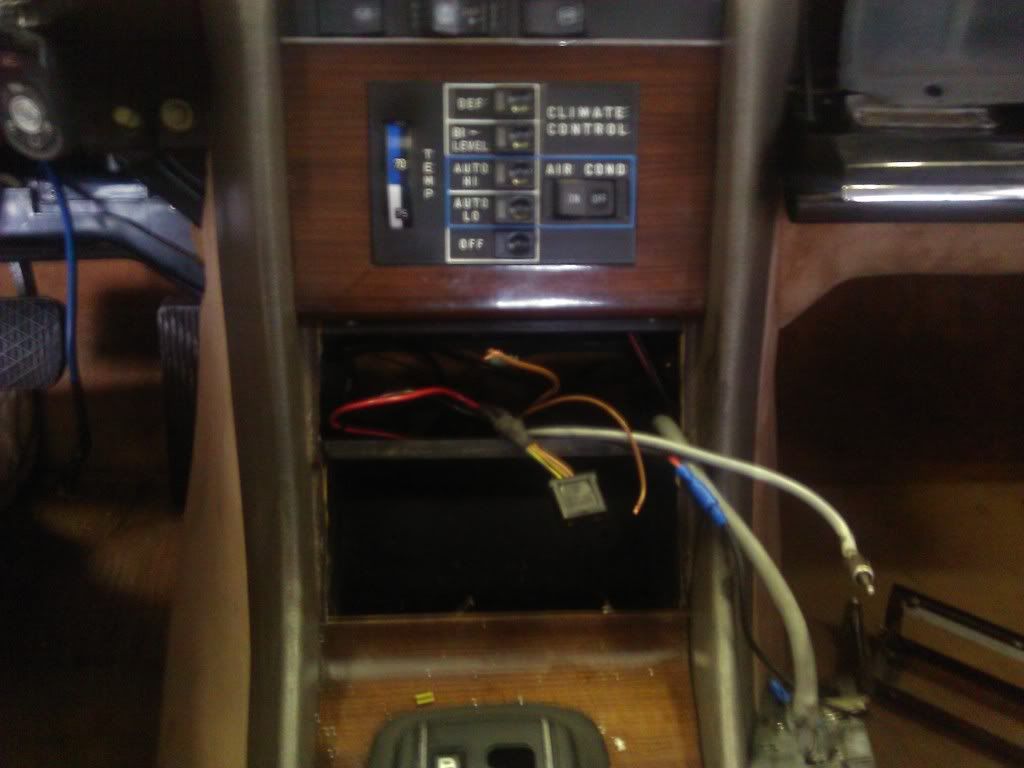

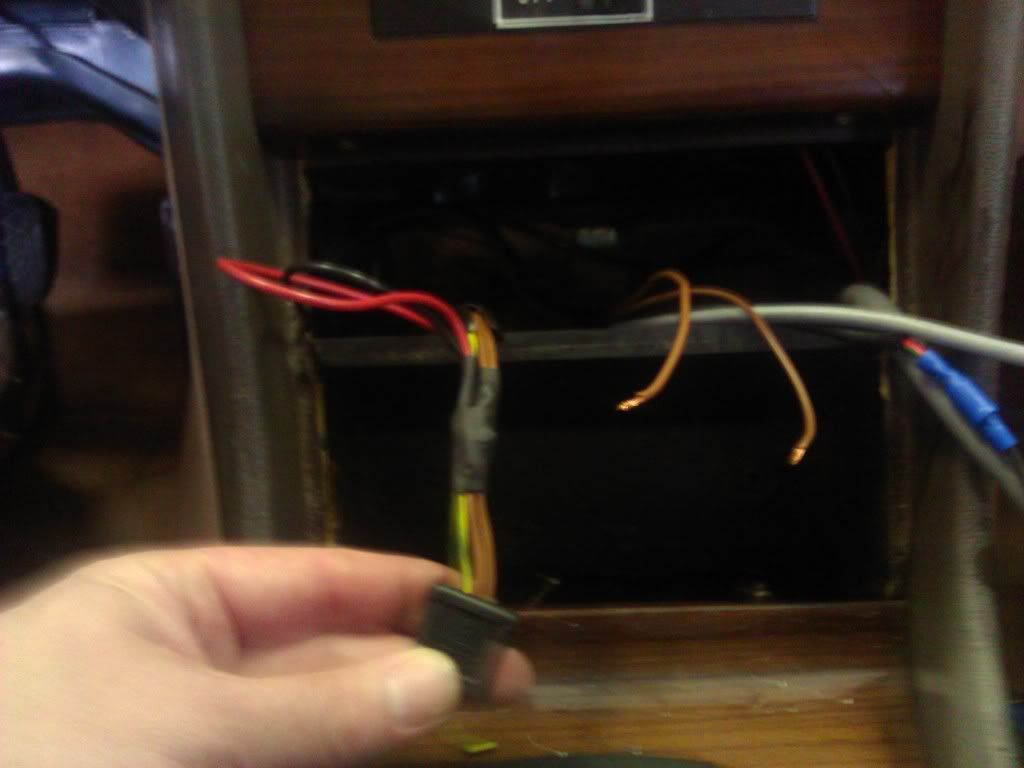

I ran the wire through the defrost vent by cutting a small hole in the duct behind the glovebox.  I also hardwired and mounted a 12v 3 way deal inside the glovebox to power it and other stuff that pops up.  The last pic shows where I tapped the cigarette lighter for power.

I still need to put everything together but so far everything is working OK and no more wires !

While I was fooling around in that area I went ahead and mounted the LEDs that indicate auxiliary pump and AC compressor function:



The yellow light is for the pump and the green is for the compressor.
« Last Edit: 15 December 2011, 01:33 PM by 1980sdga »
Jon


Little by little I have grown fond of the infamous Auto Temp II we have in our 116's

Big_Richard

  • Guest
Re: GPS (satnav) wiring solution
« Reply #1 on: 15 December 2011, 01:48 PM »
.
« Last Edit: 23 January 2013, 02:37 AM by Major Tom 6.9 »

1980sdga

  • Vintage
  • ***
  • Posts: 813
  • Location: Ga. USA
Re: GPS (satnav) wiring solution
« Reply #2 on: 15 December 2011, 05:36 PM »
Wires bug the CRAP out of me for some reason  :P  While I was at it I routed the aux in cable for the radio through the ashtray and under the console wood:



I considered mounting the aux plug on the back of the radio but it works well this way.
Jon


Little by little I have grown fond of the infamous Auto Temp II we have in our 116's

Squiggle Dog

  • W116 Addict
  • ****
  • Posts: 2,048
  • MBCA Member
  • Location: Surprise, AZ, USA
Re: GPS (satnav) wiring solution
« Reply #3 on: 16 December 2011, 08:41 AM »
That looks neat. I hide an auxiliary input cable under the center console, that connects a cassette player to my Blaupunkt CD player.
Stop paying for animal cruelty and slaughter. Go vegan! https://challenge22.com/

1967 W110 Universal Wagon, Euro, Turbo Diesel, Tail Fins, 4 Speed Manual Column Shift, A/C
1980 W116 300SD Turbo Diesel, DB479 Walnut Brown, Sunroof, Heated Seats, 350,000+

Mforcer

  • Vintage
  • ***
  • Posts: 973
  • Freedom Fighter
  • Location: Sydney, Australia
Re: GPS (satnav) wiring solution
« Reply #4 on: 20 December 2011, 03:56 PM »
I have thought about doing this but don't want to end up with a redundant connection at the end of the wire sticking through the dash. I guess it could be easy enough to use an old redundant wire to pull a new one if the plug type ever changes.
Michael
1977 450SE [Brilliant Red]
2006 B200
